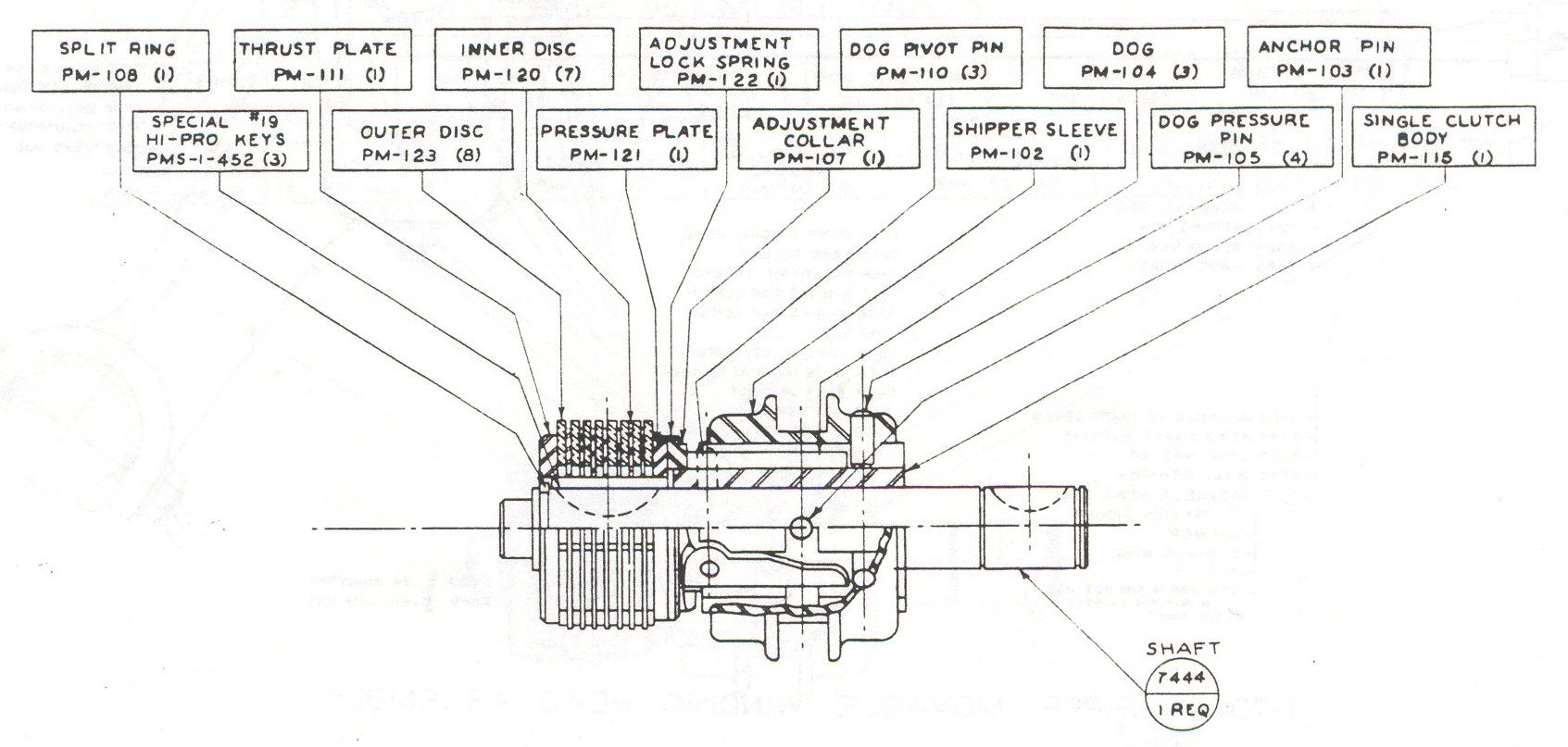

1-7429 DISC CLUTCH ASSEMBLY (ENLARGED)
Click here to open a smaller view of this drawing.
DISC CLUTCH ASSEMBLY 1-7429 REPLACEMENT PARTS
|
1-7429 DISC CLUTCH ASSEMBLY (ENLARGED) Click here to open a smaller view of this drawing.
|
|
DISC CLUTCH ASSEMBLY 1-7429 REPLACEMENT PARTS
|
